Sanken CS-M1 Supercardioid Short Shotgun Microphone

whitneyince

NAB this year was a bit of a let down but one of the new items announced that has peaked my interest is the Sanken CS-M1. I got to listen to beta unit this past November and for the price point of $895.00 it should be a winner. It will be available early June from your favorite sound vendor below is some more specs and info on the microphone.

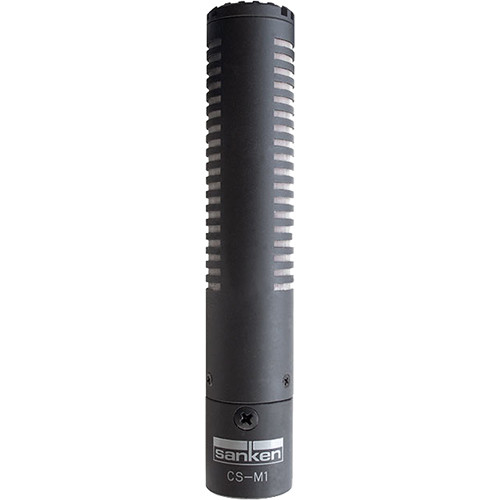

The Sanken CS-M1 is a compact and rugged supercardioid short shotgun microphone designed to deliver clear close and distant audio capture for boom operators, videographers, and audio engineers in film, television, and video production as well as ENG and music recording applications. Its short 4″ length and low 1.9 oz weight make it ideal for mounting on your DSLR or boompole. The supercardioid/lobar polar pattern yields precise directionality and low coloration at the off-axis sections of the capsule. An integrated RFI shield yields enhanced rejection of radio-frequency interference.
The electret condenser element is powered via 48V phantom power and produces a frequency response of 100 Hz to 18 kHz. An XLR 3-pin output ensures compatibility with most microphone preamps. Plosives and wind noise can be reduced by attaching the supplied windscreen. The CS-M1 ships with a vinyl case for safe and convenient transport.
Ideal for mounting on your DSLR or boompole
Compact 4″ body length doesn’t interfere with your camera lens
Weighing less than 2 ounces, it won’t weigh down your camera
Supercardioid/lobar polar pattern yields sharp directivity
Advanced RFI rejection
100 Hz to 18 kHz frequency response naturally attenuates commonly problematic low frequencies

sanken_cs_m1_super_cardioid_short_1524680431000_1404643

Tips When using a Zaxcom Wireless Camera Link

whitneyince

I think wireless camera links are the best advance in technology to happen to the location sound mixer because it gives you the freedom to do your job the best way you can, I have rarely had an issue with my zaxcom system but here is a list of things to do before shooting and a list of possible problems you may run into:

SETUP:

1. Make sure your camera man is always listening to the wireless feed via his camera headphone jack since you have no way of knowing what it sounds like.

2. Make sure all attennas and power cables are secure to the unit. The only issues I have ever had it a lose power cable or attenna.

3. Make sure the unit is secure in a saddle bag or BEC box. I have mine wrapped in velcro, which keeps them extra tight in the saddle bag or BEC box.

4. Have extra cables and attennas in case something breaks.

PROBLEMS AND SOLUTIONS:

1. Unit will not power on: Check power cables are tight by removing them and reinserting them. Check batteries if your using them. Check Power Switch.

2. Unit is on but Camera Op hears no audio: Check headphone volume knob on camera, check transmitter in your audio bag, make sure camera is set up to recieve audio correctly.

3. Poor Range: Check to make sure tx and rx attennas are tight and secure, Make sure they are in good condition. Scan for new clear frequency.

With these simple tips and tricks your Zaxcom should preform well for you and make your job much easier.
